switch

An input the reader flips by clicking it, drawn as a toggle at the end its wire leaves: the knob over to the right and the track lit in the circuit's high: hue when it is on. Its body is its label, set beside the toggle with its level beneath. value: is where it stands, and a !cue.to on it flips it at a step, so the prose and the circuit move together.

switchNode

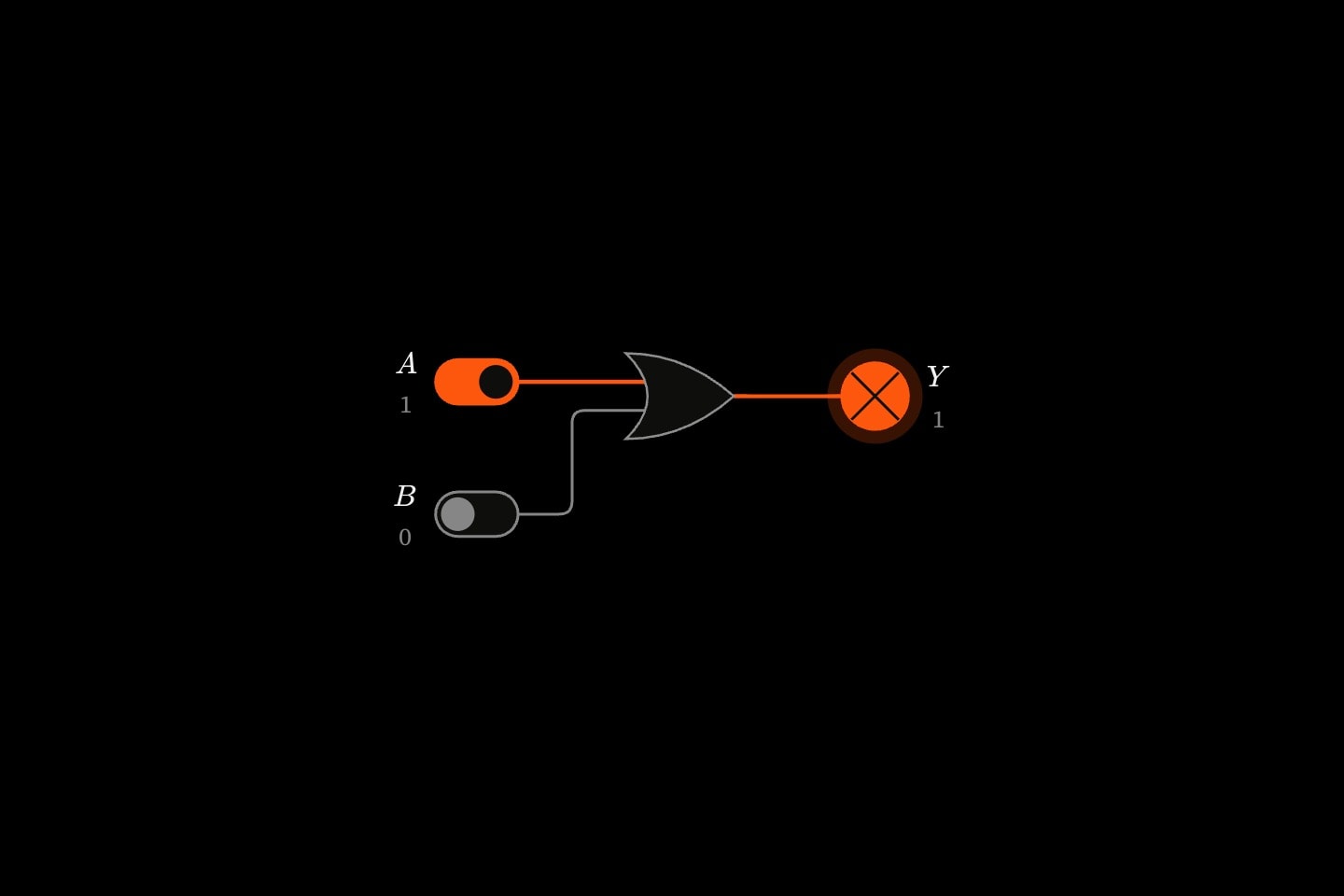

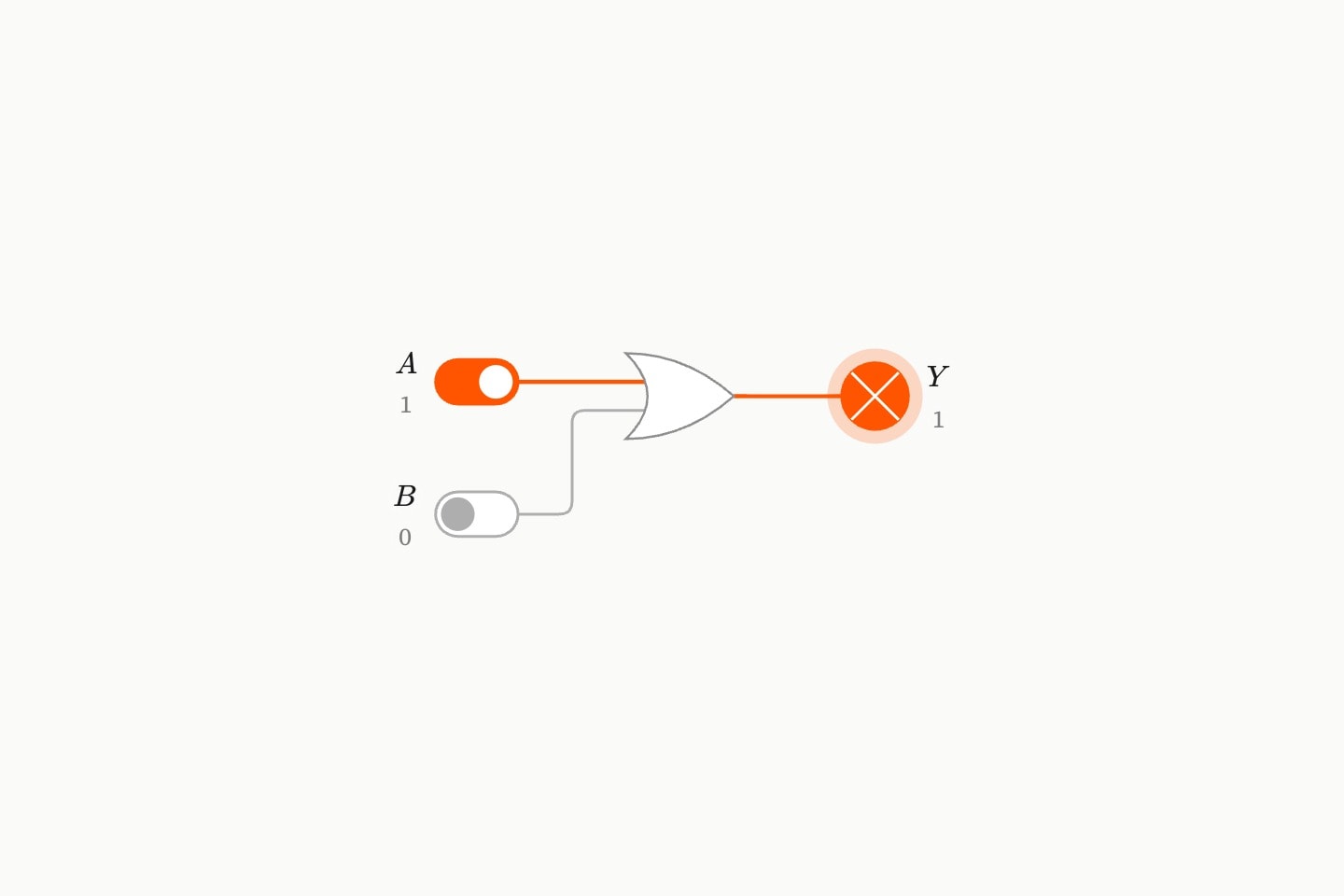

Two switches, A on and B off, feeding an OR gate whose lamp is lit.Two switches, A on and B off, feeding an OR gate whose lamp is lit.

#Attributes

valueAnimatable
Its level, 0 or 1. Keyframe it to flip it at a step: value: 0 !cue.to{1}(at: 1).
number
Default0
fixed
Keeps the reader's hands off it — for a switch only the prose should move.
boolean
Defaultfalse
hiddenAnimatable
Declared but not drawn, and taking no room while hidden. Its level still drives what it is wired to. Animatable.
boolean
Defaultfalse

#Derived attributes

Computed while the element renders — read one with #id.name in attribute position or {{#id.name}} in prose, never set.

levelDerived
Where it stands, 0 or 1, as the reader or a cue last left it: {{#a.level}}.

#Allowed content

Body { }The switch's label, rich inline; further lines sit beneath it

#Allowed in

cue { }cue.draw { }cue.trace { }cue.highlight { }cue.spotlight { }logic { }

#Examples

switch#a{$A$}
switch#s{Set}(value: 0 !cue.to{1}(at: 1); fixed)
