bulb

A filament lamp, drawn as a circle crossed through, that glows by the power it takes.

bulbNode

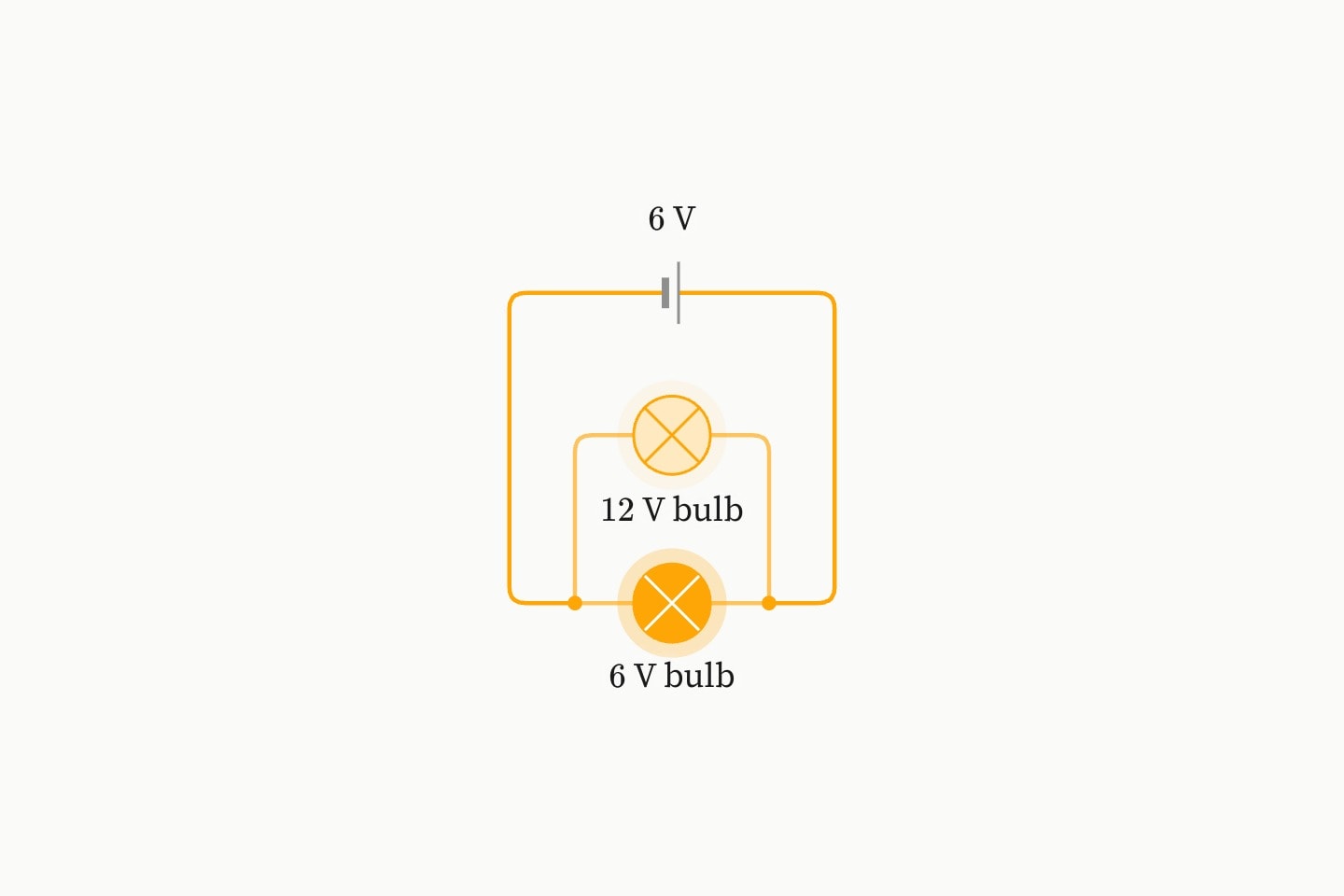

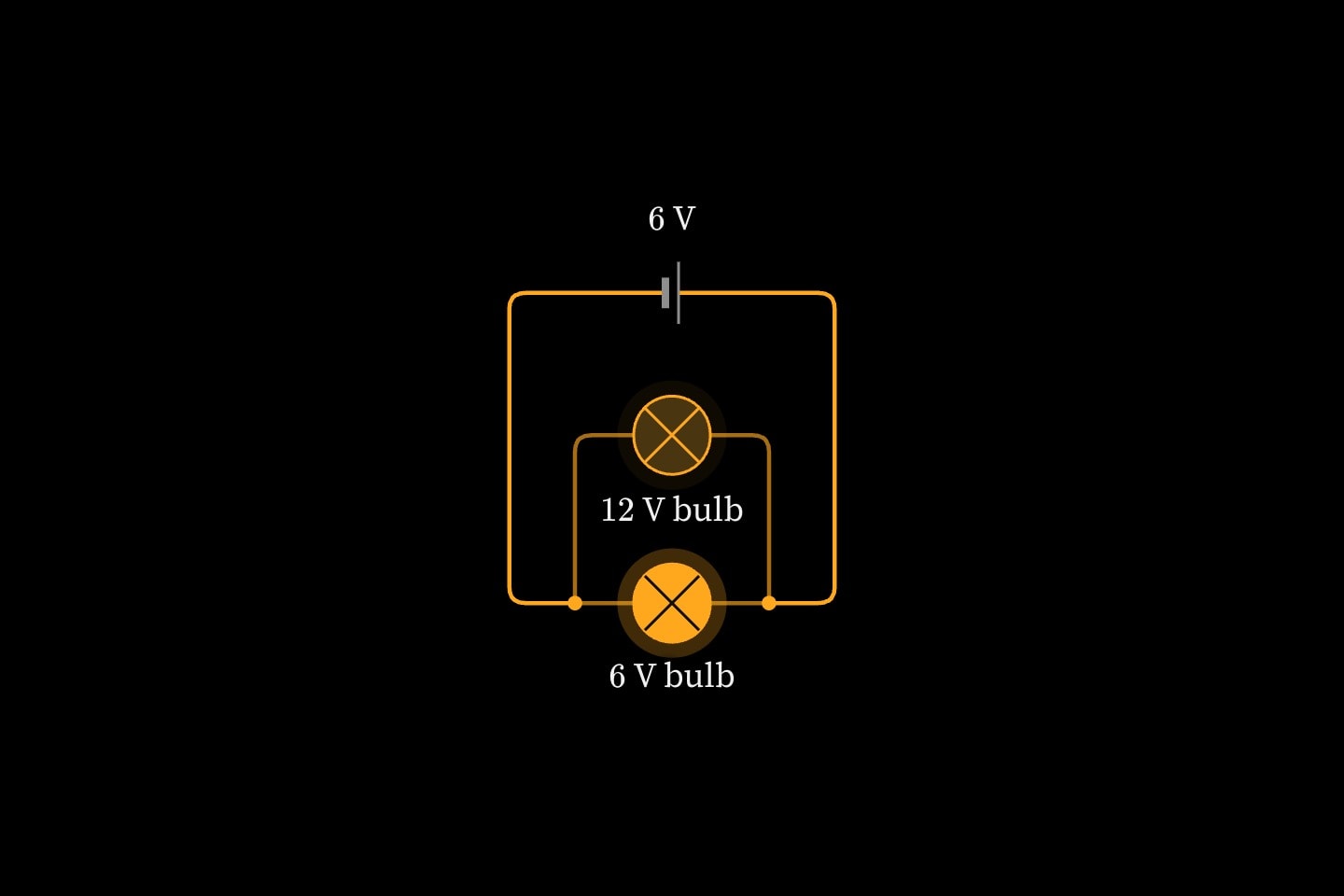

Two bulbs in parallel across a 6 V cell, one rated for 6 V glowing full and one rated for 12 V glowing faintly.Two bulbs in parallel across a 6 V cell, one rated for 6 V glowing full and one rated for 12 V glowing faintly.

#Attributes

resistanceAnimatable
Its filament's resistance, in ohms. Animatable.
circuit-quantity
Default10
ratedAnimatable
The voltage it is made for, at which it glows full. Absent, the circuit's whole emf. Animatable.
circuit-quantity
colour
The hue this bulb glows in, instead of the circuit's colour:.
colour
Also written: color
from
In a circuit placed by hand, the grid point its first end lands on.
circuit-point
to
In a circuit placed by hand, the grid point its second end lands on.
circuit-point
hiddenAnimatable
Taken out of its holder: the circuit is open where it stood. Animatable.
boolean
Defaultfalse

#Derived attributes

Computed while the element renders — read one with #id.name in attribute position or {{#id.name}} in prose, never set.

currentDerived
The current through it, in amperes.
voltageDerived
The voltage across it, in volts.
powerDerived
The power it takes, in watts: what its glow shows.

#Allowed content

Body { }The bulb's label, rich inline

#Allowed in

cue { }cue.draw { }cue.trace { }cue.highlight { }cue.spotlight { }circuit { }series { }parallel { }
