parallel

Branches joined between the same two points, drawn as rungs between two rails.

parallelNode

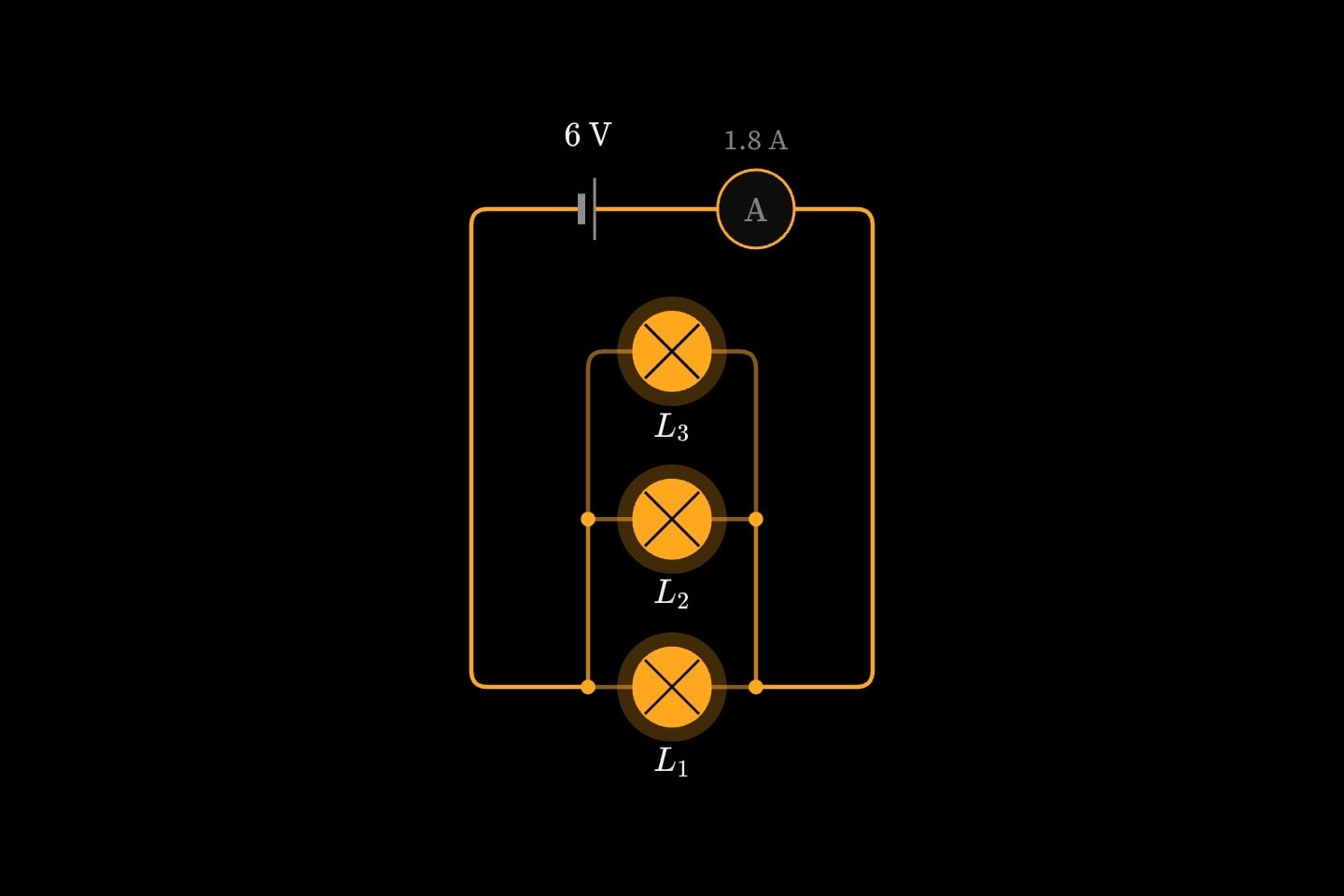

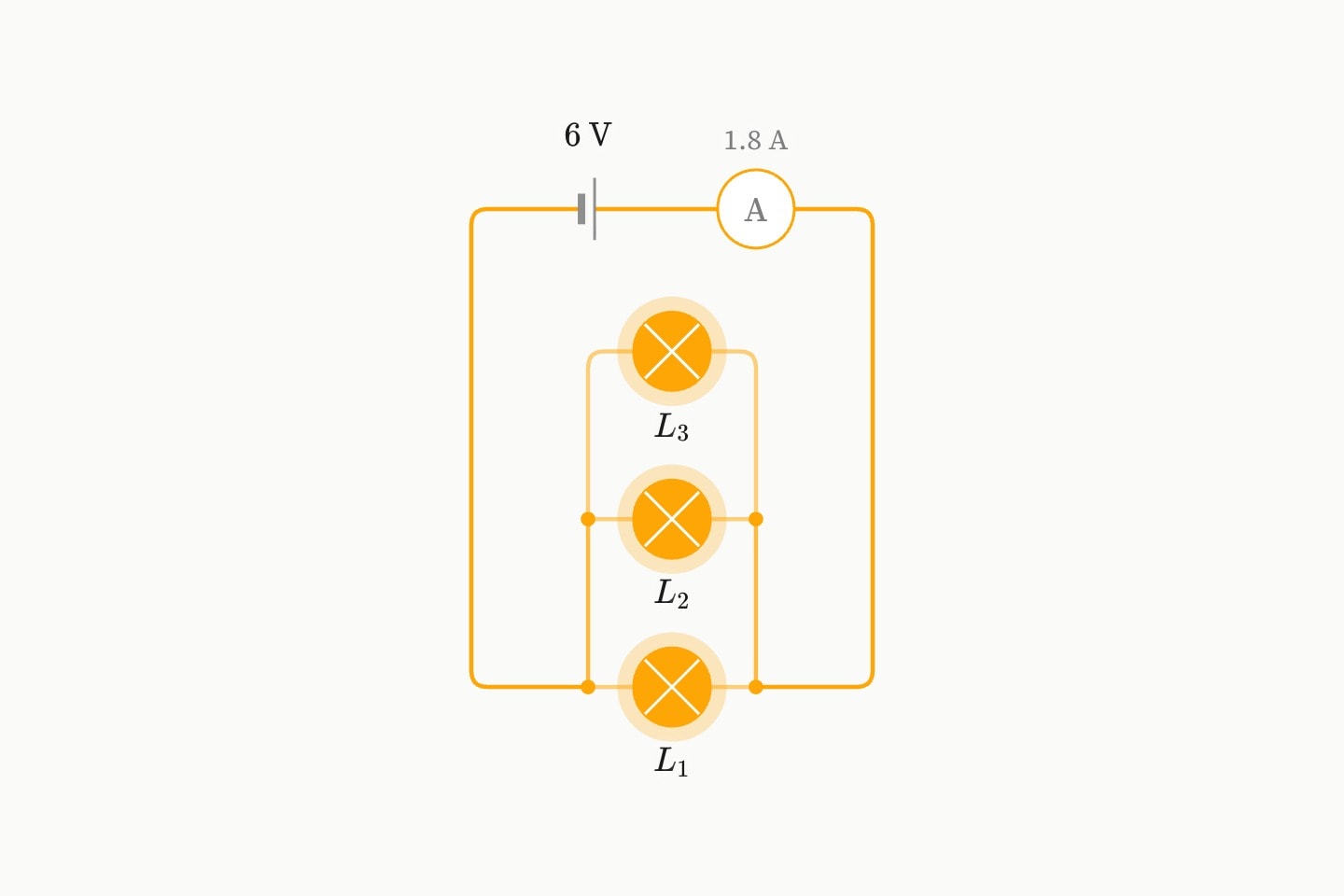

Three bulbs in parallel across a cell, drawn as three rungs between two rails, all glowing equally.Three bulbs in parallel across a cell, drawn as three rungs between two rails, all glowing equally.

#Allowed content

Body { }
cellbatteryresistorbulbbreakerammetervoltmetercapacitorseriesparallelcuecue.drawcue.highlightcue.spotlight

#Allowed in

cue { }cue.draw { }cue.trace { }cue.highlight { }cue.spotlight { }circuit { }series { }parallel { }

#Notes

  • Each child is a branch; a series is a branch of several components.
  • The first branch is drawn on the line the group sits on, the rest stacked inside the loop.
