ammeter

An ideal ammeter: it takes no voltage, and shows the current through it beneath its label.

ammeterNode

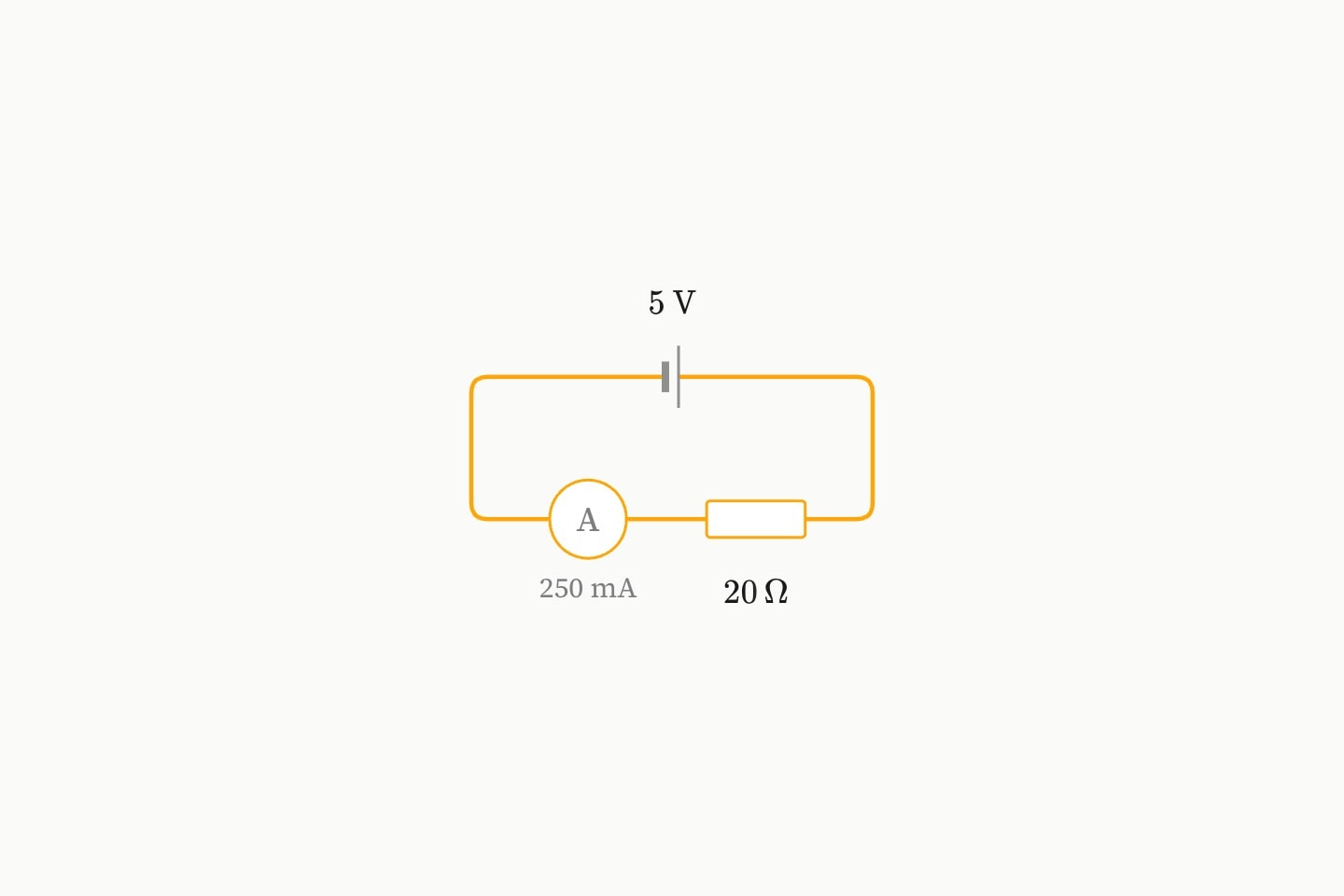

An ammeter in series with a cell and a resistor, reading 250 mA beneath its label.An ammeter in series with a cell and a resistor, reading 250 mA beneath its label.

#Attributes

from
In a circuit placed by hand, the grid point its first end lands on.
circuit-point
to
In a circuit placed by hand, the grid point its second end lands on.
circuit-point
hiddenAnimatable
Taken out of the circuit, which is open where it stood. Animatable.
boolean
Defaultfalse

#Derived attributes

Computed while the element renders — read one with #id.name in attribute position or {{#id.name}} in prose, never set.

currentDerived
What it reads, in amperes.
voltageDerived
Always 0.
powerDerived
Always 0.

#Allowed content

Body { }The ammeter's label, rich inline

#Allowed in

cue { }cue.draw { }cue.trace { }cue.highlight { }cue.spotlight { }circuit { }series { }parallel { }

#Notes

  • Written in series with what it measures.
